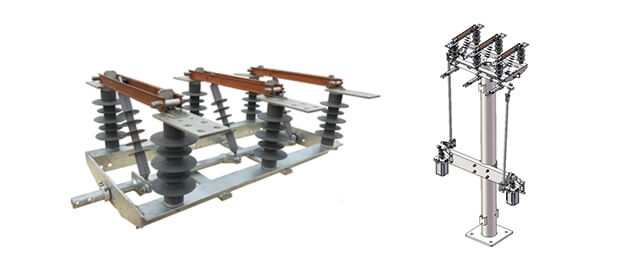

GW1-12 (24) Outdoor high voltage AC isolation switch

Rated voltage：12kV、24kV

Rated current：630A，1250A

Rated short-time withstand current：20kA、31.5kA

Mechanical life up to：10000 times

Outdoor-high-voltage-AC-isolation-switch

Product use and characteristics

GW1-12 (24) D (G•W) Outdoor high-voltage AC isolation switch is suitable for power lines with AC 50Hz(60Hz) and rated voltage of 12kV (24 kV) to disconnect or disconnect without load

The high-voltage circuit is connected in order to convert the high-voltage line, change the mode of operation, and implement safe electrical isolation of the overhauled bus and high-voltage electrical equipment such as circuit breakers.

Product parameter

Serial number	Project	Argument
1	Rated voltage	12kV、24kV
2	Rated current	630A，1250A
3	Rated short-time withstand current	20kA、31.5kA
4	Mechanical life up to	10000 times
