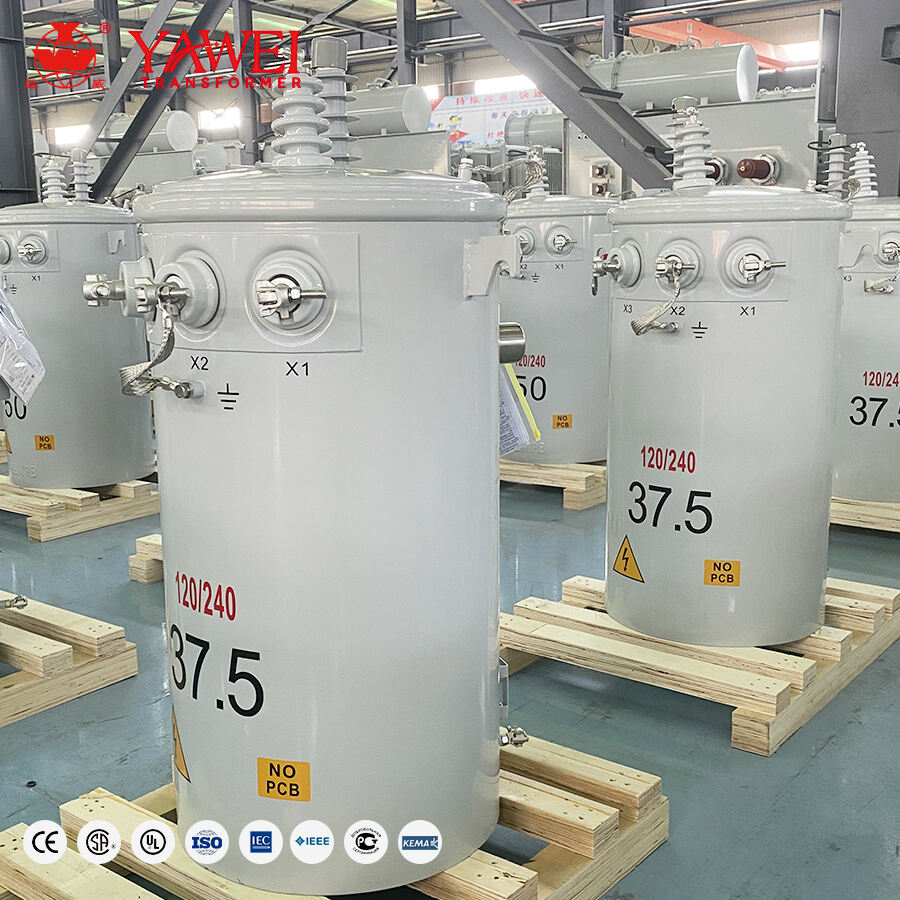

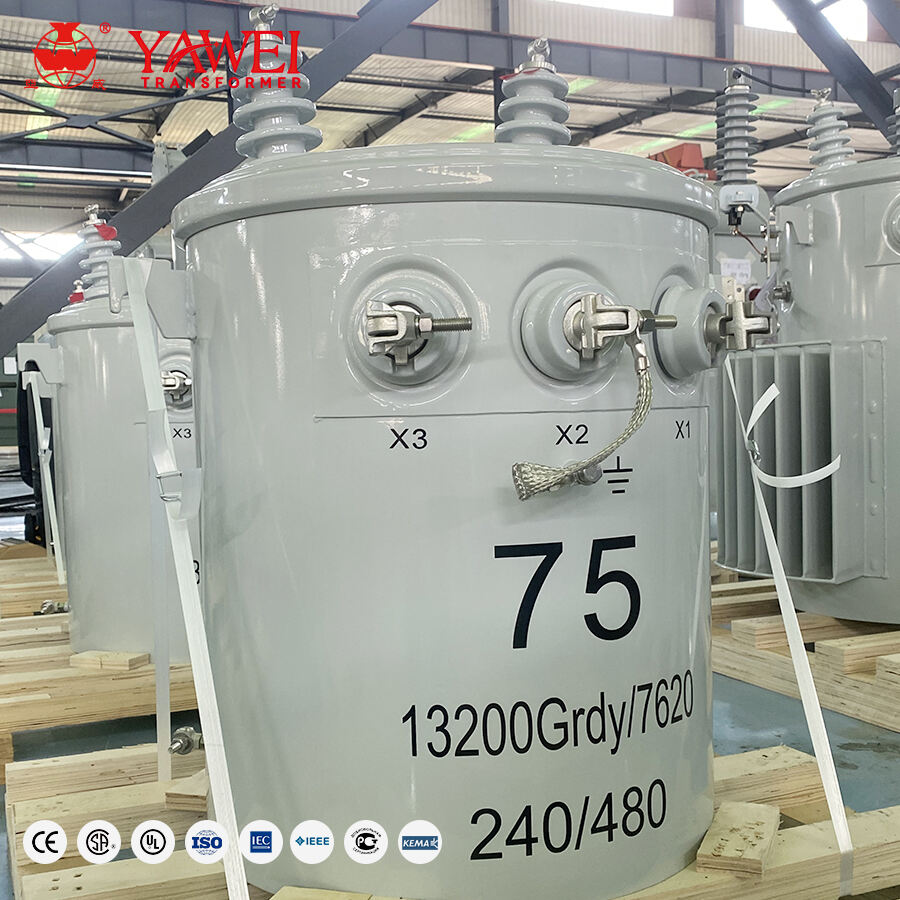

Single Phase Pole Mounted Transformer
Single-phase pole mounted transformers are power distribution transformers that are mounted on a power pole (wood or concrete) and usually horizontal to overhead cables. Single-phase pole mounted transformers are common breadbox transformers used for converting distribution voltage to a 120/240 volt power source used by homes and small businesses.
Conventional 50 or 60 Hz (5-167 kVA)
Primary voltage: 2400-34,500 V
Secondary voltage: 120-600 V
Primary Voltage Ratings: 21600Delta V
Secondary Voltage Ratings: 120/240V
H.V. TAP RANGE: 20520-22680V
Primary Voltage Ratings: 19920V
Secondary Voltage Ratings: 120/240V
H.V. TAP RANGE: 18924-20916V
Primary Voltage Ratings: 2.4-34.5 kV
H.V. TAP RANGE: 2280-36225V
CONNECTION TYPE: Ii0/Ii6
H.V. TAP RANGE: 2280-36225V
CONNECTION TYPE: Ii0/Ii6
TYPE: Conventional/CSP
H.V. TAP RANGE: 2280-36225V
CONNECTION TYPE: Ii0/Ii6
TYPE: Conventional/CSP
H.V. TAP RANGE: 2280-36225V
CONNECTION TYPE: Ii0/Ii6
TYPE: Conventional/CSP
Primary Voltage Ratings: 13.8 kV;12.47kV;2.4;7.2kV;14.4kV;24.94kV;34.5kV;27.6kV, 14.4*16kV,16*27.6kV, 2.4*7.2kV,ect
Secondary Voltage Ratings: 120/240V; 240/480V;347/600Y;277V;347V
H.V. TAP RANGE: 2280-36225V
CONNECTION TYPE: Ii0/Ii6
TYPE: Conventional/CSP
BIL: 30-150kV
Standards: IEEE/ANSI/CSA/IEC/DOE
Application: Distribution,Ultilities

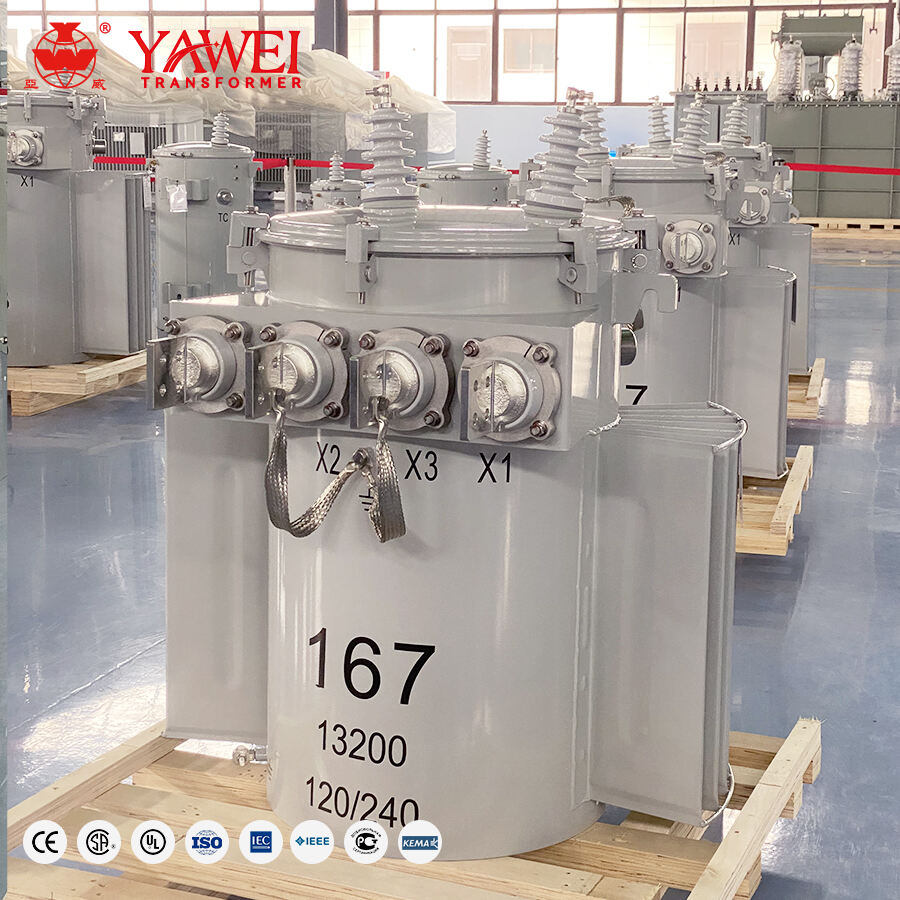

Power Rating: 167 kVA
