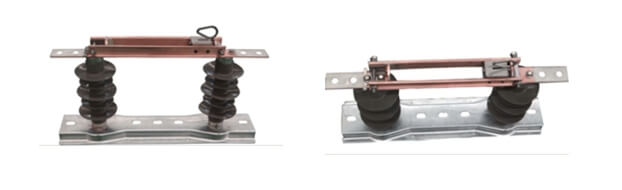

GW9-12(24) Outdoor high voltage AC isolation switch

The GW9-12(24) product is a two-column vertical structure for power systems with a rated frequency of 50Hz(60Hz) and rated voltage of 12kV(24kV).

GW9-12(24)-Outdoor-high-voltage-AC-isolation-switch 2

Product use and characteristics

The GW9-12(24) product is a two-column vertical structure for power systems with a rated frequency of 50Hz(60Hz) and rated voltage of 12kV(24kV). The high voltage line is switched when there is voltage and no load, and the high voltage bus, circuit breaker and other electrical equipment are electrically isolated from the live high voltage line. It is especially suitable for urban and rural power grid construction and transformation and places requiring frequent operation.

Product parameter

Serial number	Project	Argument
1	Rated voltage	12kV、24kV
2	Rated current	400A、630A，1250A
3	Rated short-time withstand current	20kA、25kA
4	Mechanical life up to	10000 times
