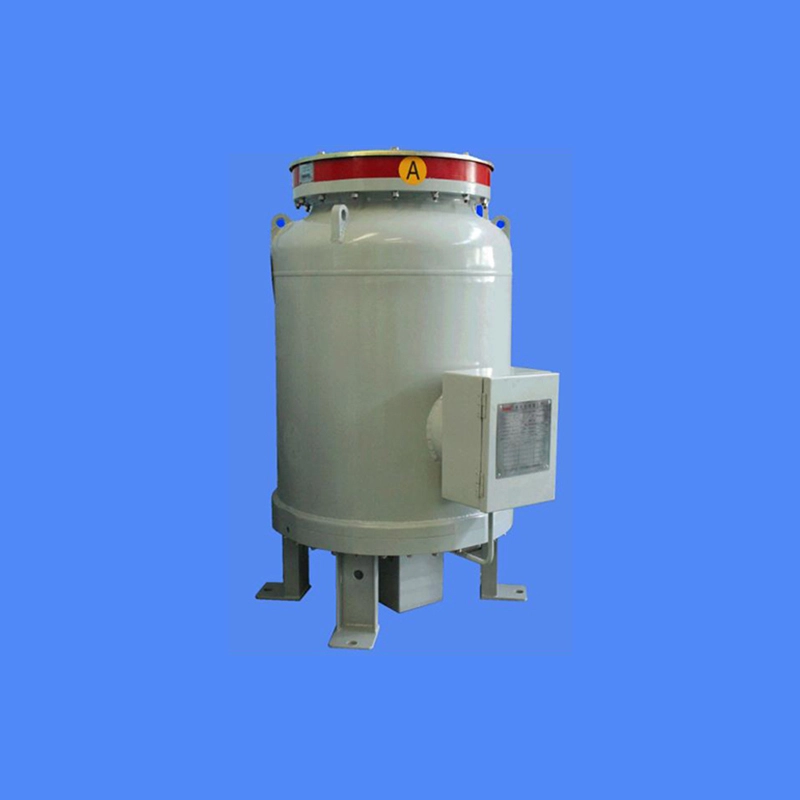

JSQXFH-110 GIS with SF6 gas insulation tape isolation device voltage transformer

Product overview

The product is designed for GIS product maintenance or test without removing the voltage transformer, the transformer body has its own isolation device, to realize the central conductor of the basin insulator and the body disconnect and close. It can reduce the isolation switch device installed on the front end of the voltage transformer by GIS ontology and save the cost.

1) The operation transmission rod seal adopts imported double-channel seal to effectively ensure the sealing effect of the product when inflating and vacuuming, with reliable sealing, low friction and easy installation.

2) The operating mechanism adopts the clever mechanical transmission principle, through manual rotation, the moving contact moves in a straight line, so as to achieve the separation and closing of the isolation device, this operating mechanism is convenient and lightweight, high reliability, in order to effectively prevent misoperation, you can manually tighten the locking screw to limit the rotation of the hand wheel.

3) In order to monitor the isolation operation, the operation box is equipped with the switching stroke switch and indication mark to ensure the accuracy of the switching.

Product parameter

The accurate level and rated output load in the above table can meet other load requirements according to the actual situation.
