Compact-substation

1、What is a Compact Substation?

This product fully complies with GB/T17467-2010 "High voltage, low voltage preassembled substation" standard. It is suitable for urban public power distribution, street light power consumption, industrial and mining enterprises, urban buildings, residential buildings, mountain areas, hotels, parks and site construction, etc. It can realize ring network and terminal power supply mode. Pre-installed substation is widely used in 10~35KV urban public power distribution, industrial and mining enterprises, urban buildings, residential areas and other unattended intelligent power places Prefabricated transformer substation can be used as ring main type and terminal type of power transformation/power distribution device. It is widely used in outdoor locations such as residential district, industrial and mining enterprises, hotel, hospital, department store, airport, park and railway.

2、The Benefits of JSYW compact substation

Jiangsu YaWei Transtormers have been successtuly exported to severa countries incuding the United Stotes, Canada, Panama, Venezuela, Uzbekistan,Australia,and Bulgaria.

We have sufficient production capacity to ensure that goods can be delivered on time. We have professional after-sales teams around the world, this ensures prompt trouble shooting and resolution of any issues you may encounter.



Whether you are a utlity company, transformer distributor, or builder, you can purchase Jiangsu YaWei's Power Transformer with confidence,knowing that you are investing in a reliable and reputabe product.Experience the efficiency and reliablity of Jiangsu YaWei Transtormer tailored to meet your specific needs.

3、JSYW compact substation Product

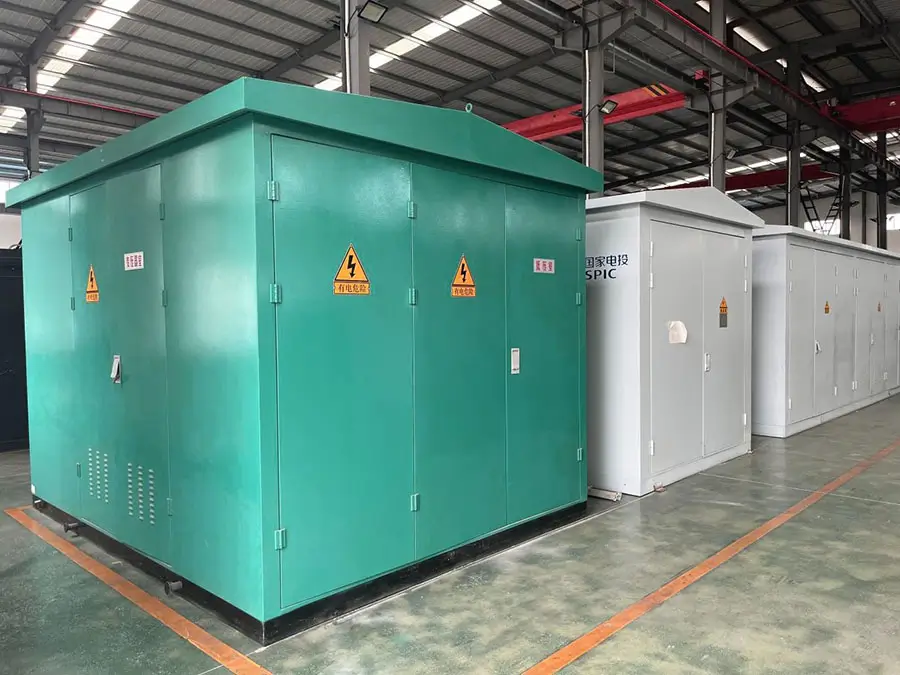

· The basic structure of the box is divided into two types: "eye" shape and "product" shape. The box frame is welded with high-quality channel steel and Angle steel. High mechanical strength; The box is made of aluminum alloy. It has good anti-corrosion ability, the overall beautiful shape can be coordinated with the surrounding environment by painting and coloring, and the carefully designed bottom lifting device provides great convenience for installation and transportation.

· There are independent high voltage chamber, transformer chamber and low voltage chamber in the transformer box. The lighting in each room is automatically turned on with the opening of the door. The high pressure room is equipped with the high pressure ring switchgear. According to the user needs to choose pressure type, vacuum type load switch, and with "five prevention" function, when the current limiting type high-voltage fuse, when a phase fuse is blown, the load switch automatically opens to avoid failure caused by the lack of phase operation.

· The transformer room adopts a forced cooling device with natural ventilation and automatic control, and has an exhaust system that automatically controls with temperature changes, which can effectively control and reduce the temperature in the box to meet the operation requirements. According to user requirements, anti-condensation devices can also be used, and tracks can also be provided. Easy access from both sides of the transformer room doors. The box material can prevent rain and dirt from entering. With long-term outdoor use conditions, with anti-corrosion, waterproof, dustproof performance, long service life, simple maintenance, beautiful shape and other functions.

· The transformer can be dry or oil immersed transformer. Oil-immersed transformer can be selected with oil pillow and oil-free pillow fully sealed two kinds.

· The low pressure chamber has the overall function of a complete set of switchgear, which is available for users to select and combine.

· Shell materials: Shell materials include composite plate, stainless steel composite plate, aluminum-plated zinc plate, stainless steel plate, metal carving plate, environmental protection wood, etc.

· Structural features: High voltage structure is reasonable and compact, SF6, FZN57, VHC ring network cabinet can be selected, with five anti-interlocking functions, transformer natural ventilation and automatic air cooling system can be applied to dry and Oil Immersed Transformers.

· Low-voltage chamber: It can adopt a variety of structural power distribution schemes according to user requirements, including power distribution, lighting distribution, automatic reactive power compensation, energy metering and other functions, equipped with automatic lighting system, high dust resistance, long service life, simple maintenance and beautiful appearance.

4、Use environment

· Altitude 1000m, high altitude users, please put in the order. This product can meet the requirements of users below 4000m altitude;

· Ambient temperature: -30℃ ~ +40℃;

· Temperature: maximum monthly average temperature +30℃, maximum annual average temperature +20℃;

· Relative humidity: daily average ≤ 95%, monthly average ≤ 90%;

· Shock-proof level: horizontal acceleration 0.4m/S2, vertical acceleration 0.15m/S2;

· Installation location: no violent impact, no serious pollution and chemical corrosion, no conductive dust and explosion risk;

· When the normal conditions of use cannot be met, please negotiate with our company.

5、Adoption standard

GB/T17467-1 998 / eqVlECl300:1 995 High/low voltage pre-installed substation

Gb1094-1 996 / eqVlEC 76:1993 Power transformers

Gb6450-1 998 / eqVIEC 726:1982 thousand type power transformer

Gb11022-1999 / eqVlEC 60694:1996 Common Technical Conditions for High voltage switchgear and control equipment standards

Gb3906-2006 / neqlEC398:1990 3.6-40.5kV AC metal enclosed switchgear and control equipment
