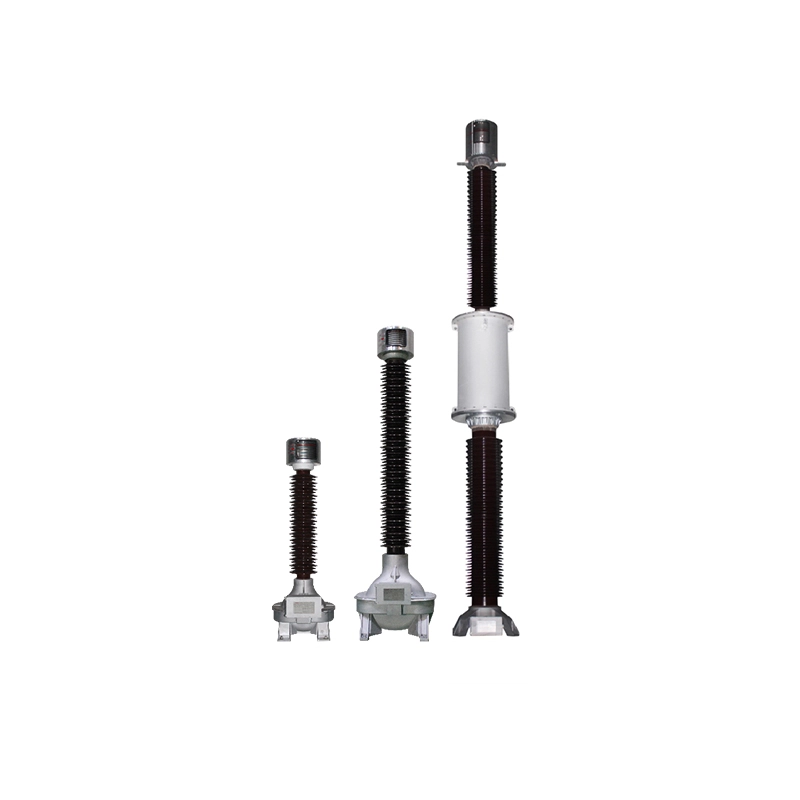

JDCF series oil-immersed electromagnetic voltage transformer

Product Introduction:

JDCF series oil-immersed electromagnetic voltage transformer is a voltage transformer with transformer oil and insulating paper as the insulating medium. It protects the measuring instrument and relay in the power system, and miniaturizes and standardizes the secondary equipment. It is an indispensable power equipment in the substation.

Product features:

It has the characteristics of rapid transient response. Meet IEC 61869-3, CFE NRF-026, IEEE57.13 and other technical standards. Single-stage electromagnetic voltage transformer, the upper part is an expander component, the middle part is a porcelain sleeve component, the bottom is a fuel tank, and the body parts are placed inside. The body of the device comprises a winding and a capacitor voltage balancing plate, and the winding and capacitor voltage balancing plate are wrapped into one body. Product size is small, light weight, large load, dielectric loss stability.

Product parameter

Technical parameter
Model number	Maximum voltage of equipment（kV）	Rated frequency（Hz）	Rated power frequency withstand voltage（kV）	Rated lightning impulse withstand voltage (full wave) (peak)（BIL）（kV）	Rated load（VA）
JDT-31.5	40.5	50/60	95	200	GB/IEC 10/30/50/75/100/120/150/200/300 IEEE 0.15Y/0.15MWXYZ/0.3MWXYZ/0.6MWXYZ/0.6ZZ/1.2ZZ
JDX6-40.5	72.5	50/60	95	200
JDCF-72.5	72.5	50/60	160	350
JDCF-126	126	50/60	230	550
JDCF-145	145	50/60	275	650
JDCF-170	170	50/60	325	750
JDCF-245	245	50/60	460	1050
JDCF-300	300	50/60	460	1050
JDCF-420	420	50/60	630	1425
JDCF-550	550	50/60	740	1550

Technical parameter
Model number	Rated voltage factor/time	All up weight（kg）	Thermal limit output（VA）	Dimension
				A（mm）		T（mm）		H（mm）
JDT-31.5	1.2 times/continuous, 1.9 times /30s	180	1000	320/360	1010±10		1260±10
JDX6-40.5		152	1000	315	985±20		1265±20
JDCF-72.5		240	1000	450	1225±30		1510±30
JDCF-126	1.2 times/continuous, 1.5 times /30s	344	2000	450	1900±30		2180±30
JDCF-145		350	2000	450	1900±30		2180±30
JDCF-170		370	1000	450	2300±50		2580±50
JDCF-245		655	1000	600	3180±50		3540±50
JDCF-300		700	1000	600	3180±50		3540±50
JDCF-420		1600	1000	600	5795±50		6350±50
JDCF-550		1600	1000	600	6395±50		7000±50
