Oil immersed transformers

Standard：IEC60076 & SEC
Rated frequency：50HZ/60 HZ
Connection and vector group：Dyn11*

1. What is an Oil-Immersed Transformer?

An Oil-Immersed Transformer is a type of transformer that uses oil for cooling and insulation. This transformer is designed to step up or step down alternating current (AC) voltage, making it essential for efficient power distribution. Higher voltages are easier and faster to transport, while lower voltages are needed for use in residential, commercial, and industrial areas.

In an oil-immersed transformer, the core and windings are suspended in a steel tank filled with transformer oil. This oil plays a critical role in cooling the transformer, using natural convection to circulate and dissipate heat generated during operation.

Key Features of an Oil-Immersed Transformer:

Cooling and Insulation – The oil absorbs heat and insulates the transformer to ensure efficient operation in high-energy environments.

Convection Cooling – Oil circulates naturally within the tank to maintain optimal temperatures, preventing overheating.

Temperature Control – To prevent oil deterioration, the operating temperature should be kept below 85°C, with a daily average of around 30°C to ensure longevity and reliable performance.

Oil-immersed transformers are widely used in various power distribution systems due to their reliability and ability to handle high voltages efficiently while maintaining proper insulation and cooling.

2. The Benefits of JSYW Oil Immersed Transformers

Jiangsu YaWei Transtormers have been successtuly exported to severa countries incuding the United Stotes, Canada, Panama, Venezuela, Uzbekistan,Australia,and Bulgaria.

We have sufficient production capacity to ensure that goods can be delivered on time. We have professional after-sales teams around the world, this ensures prompt trouble shooting and resolution of any issues you may encounter.

Whether you are a utlity company, transformer distributor, or builder, you can purchase Jiangsu YaWei's Power Transformer with confidence,knowing that you are investing in a reliable and reputabe product.Experience the efficiency and reliablity of Jiangsu YaWei Transtormer tailored to meet your specific needs.

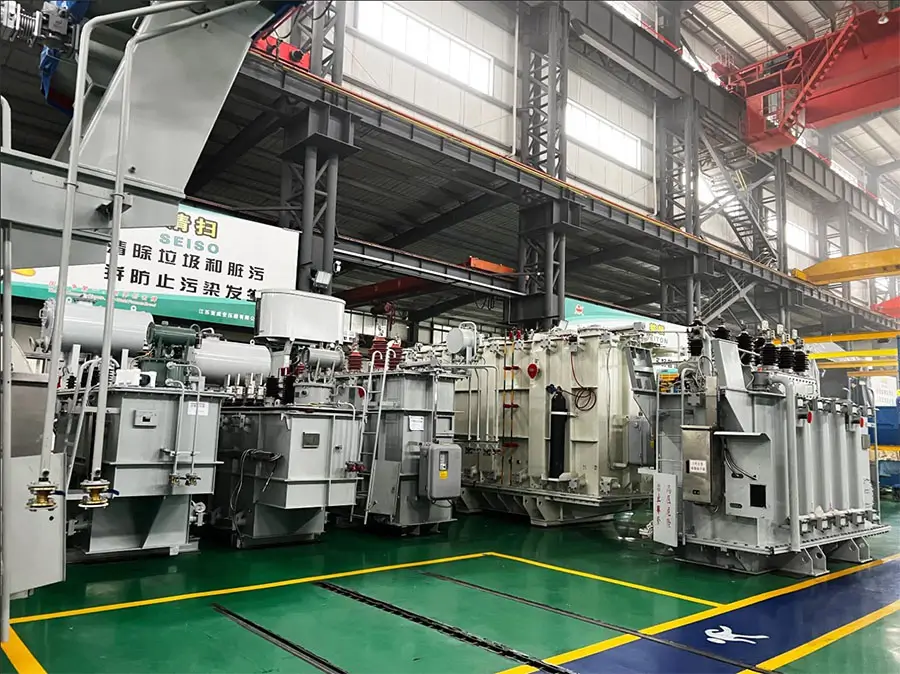

Main transformer workshop

3、JSYW Oil immersed Transformer Product

Oil-immersed transformers are more affordable. They are often up to half the price of a dry-type transformer with the same capacity.

Oil-immersed transformers tend to be more successful at cooling the transformer than a dry type. Oil is a better cooling medium. They also have a higher voltage capacity. Dry-type transformers operate below 35 kV, while there are no limits with oil-immersed. Oil-immersed transformers are more versatile.

Dry-type can typically go from an intermediate location to the power consumption source. Oil-immersed can function as both power and distribution transformers.

Oil-immersed transformers are better for the environment, as they are much easier to recycle than dry-type. They are also smaller and work best in outdoor environments in case of an oil spill or other accident.

4.Parameters of oil immersed transformer

Technical data of S11 series 35kV Loss-lors and non-exciting regulation transformer

Rated Capacity(kVA)	Voltage Combined			Vector-group	No-load Loss(w)	Load loss(w) 75℃	No-load current(％)	Short-circuit Impendance (％)
Rated Capacity(kVA)	HV(kV)	Tapping Ranges	LV(kV)	Vector-group	No-load Loss(w)	Load loss(w) 75℃	No-load current(％)	Short-circuit Impendance (％)
630	35	±5％	3.15 6.3 10.5	Yd11	830	7870	1.10	6.5
800					980	9410	1.00
1000					1150	11540	1.00
1250					1410	13940	0.90
1600					1700	16670	0.80
2000					2180	18380	0.70
2500					2560	19670	0.60
3150	35~38.5	±5％	3.15 6.3 10.5		3040	23090	0.56	7.0
4000					3620	27360	0.56
5000					4320	31380	0.48
6300					5250	35060	0.48	7.5
8000	35~38.5	±2×2.5％	3.15 3.3 6.3 6.6 10.5 11	Ynd11	7200	38480	0.42
10000					8700	45320	0.42
12500					10080	53870	0.40	8.0
16000					12160	65840	0.40
20000					14400	79520	0.40
25000					17020	94050	0.32
31500					20220	112860	0.32

5. Applications of Oil immersed Transformer

Well-ventilated indoors and outdoors in natural environment, if urban and rural power transmission and distribution network systems, some special oil transformers can also be used in places with harsh environments, such as seaside, chemical plants, coal mines, etc.
