GIS

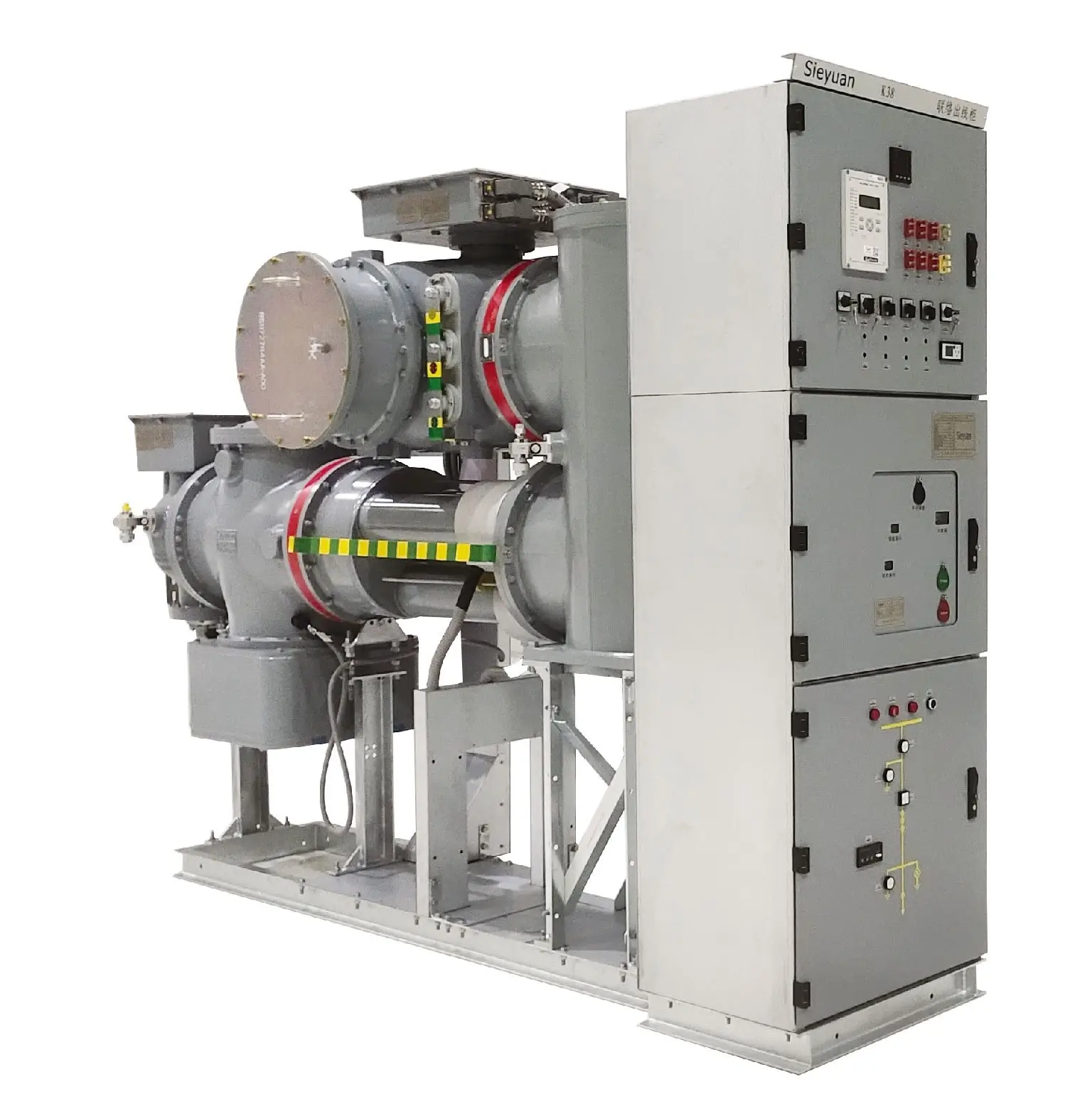

The product uses sulfur hexafluoride gas with good insulation performance as the insulating extinguishing medium, which greatly reduces the volume of the substation. The charged part is closed with a metal shell, which is not affected by the external environment, and is shielded from electromagnetic and static electricity, with low noise, strong anti-radio interference ability and excellent anti-seismic performance. Suitable for areas with harsh environmental conditions.
Rated voltage：40.5kV
Rated current：Feeder current: 1250, 2000, 2500, 3150A Main bus maximum current: 4000A
Rated short-time power frequency withstand voltage (1min, RMS)：95kV、118kV

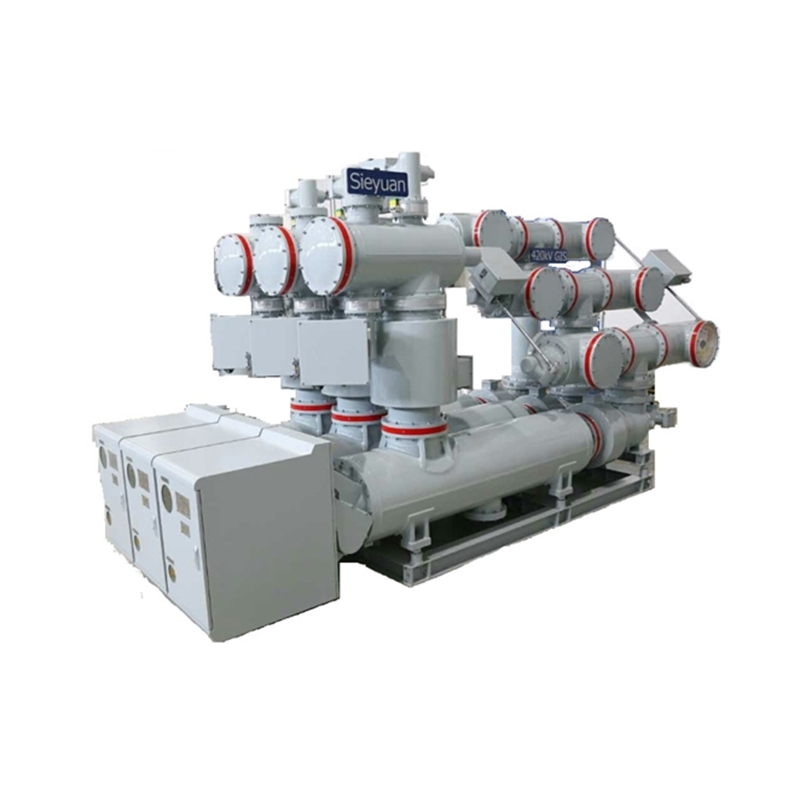

1. Rated voltage: 363/420kV;
2. Rated frequency: 50/60Hz;
3. Rated current: 4000/5000A;
4. Rated short-circuit breaking current: 50/63 kA;
5. Rated short-circuit closing current: 130/171kA;
6. Rated short-time withstand current and duration: 50kA /3s, 63kA/3s;
7. Rated peak withstand current: 130/171kA;
.webp)

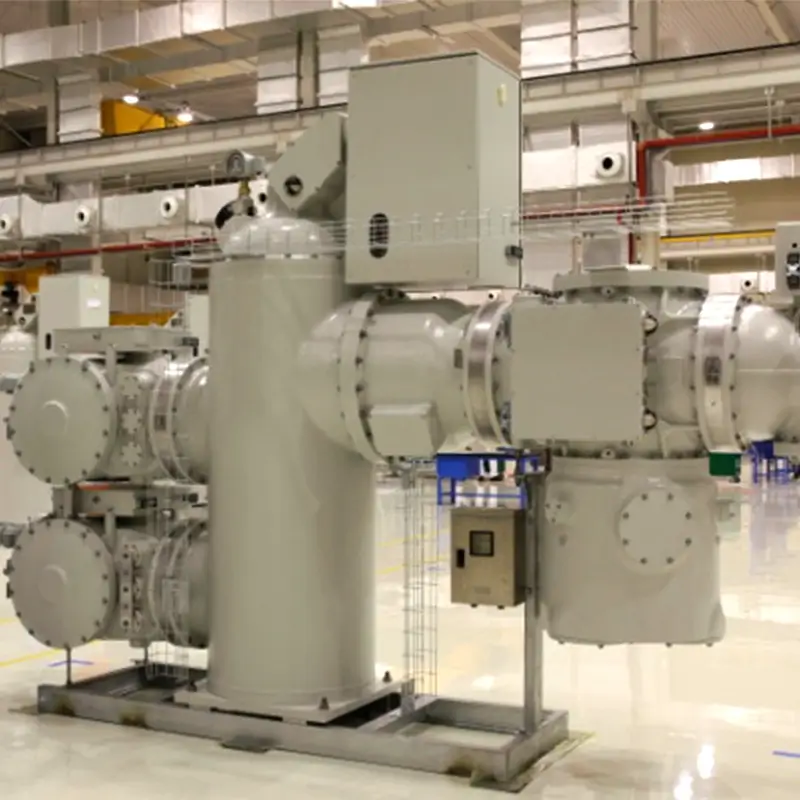

1. Rated voltage: 126/145 kV;
2. Rated frequency: 50/60Hz;
3. Rated current: 2000/3150A;
4. Rated short-circuit breaking current: 40 kA;
5. Rated short-circuit closing current: 104 kA;
6. Rated short-time withstand current and duration: 40kA / 3s;
7. Rated peak withstand current: 104 kA;

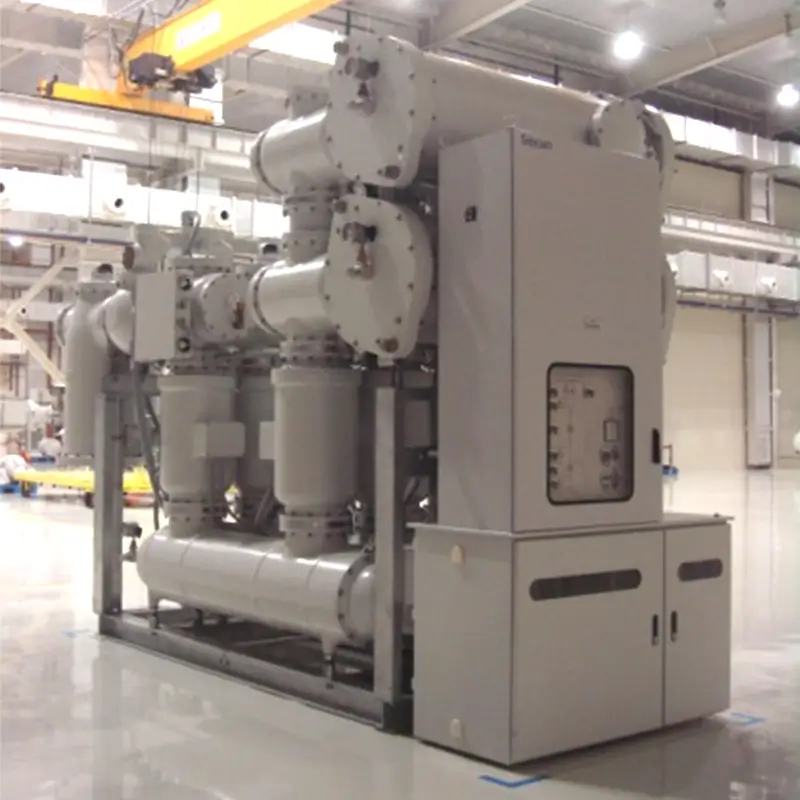

1. Rated voltage: 252 kV;
2. Rated frequency: 50/60Hz;
3. Rated current: 3150/4000/5000A;
4. Rated short-circuit breaking current: 50/63 kA;
5. Rated short-circuit closing current: 130/171kA;
6. Rated short-time withstand current and duration: 50kA /3s, 63kA/3s;
7. Rated peak withstand current: 130/171kA;

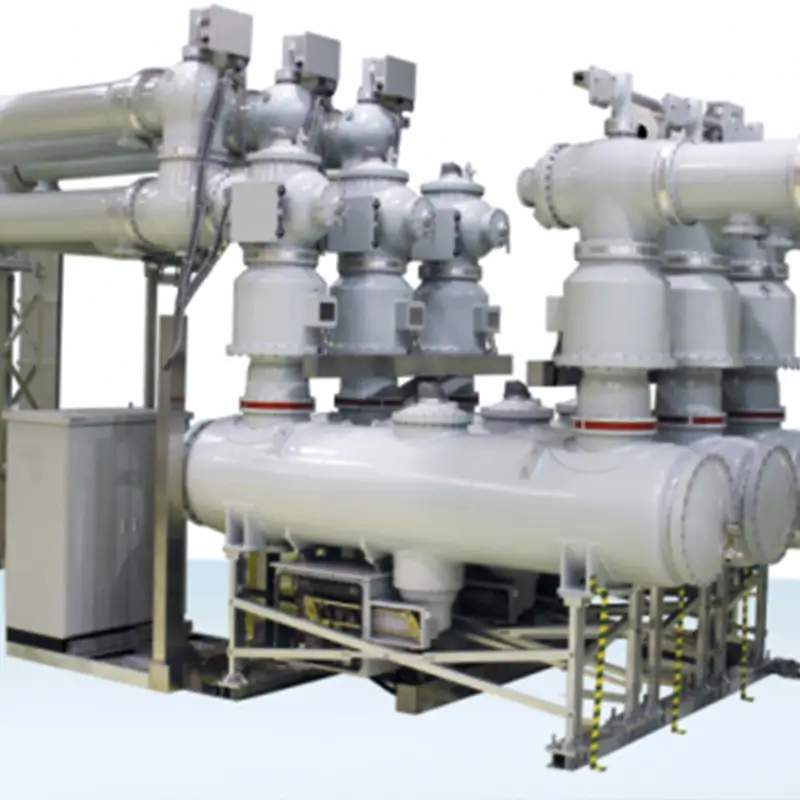

Rated voltage: 550kV;
Rated frequency: 50/60Hz;
Rated current: 5000/6300A;
Rated short-circuit breaking current: 63 kA;
Rated short-circuit closing current: 171kA;
Rated short-time withstand current and duration: 63kA/3s;
Rated peak withstand current: 130/171kA;
