HGIS
The product uses sulfur hexafluoride gas with good insulation performance as the insulating extinguishing medium, which greatly reduces the volume of the substation. The charged part is closed with a metal shell, which is not affected by the external environment, and is shielded from electromagnetic and static electricity, with low noise, strong anti-radio interference ability and excellent anti-seismic performance. Suitable for areas with harsh environmental conditions.

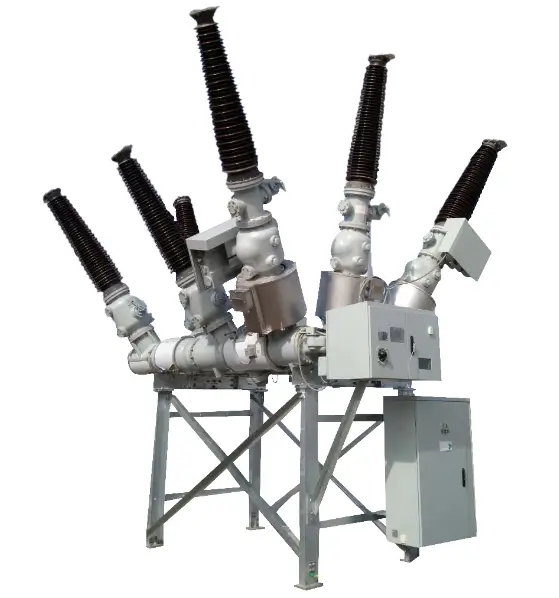

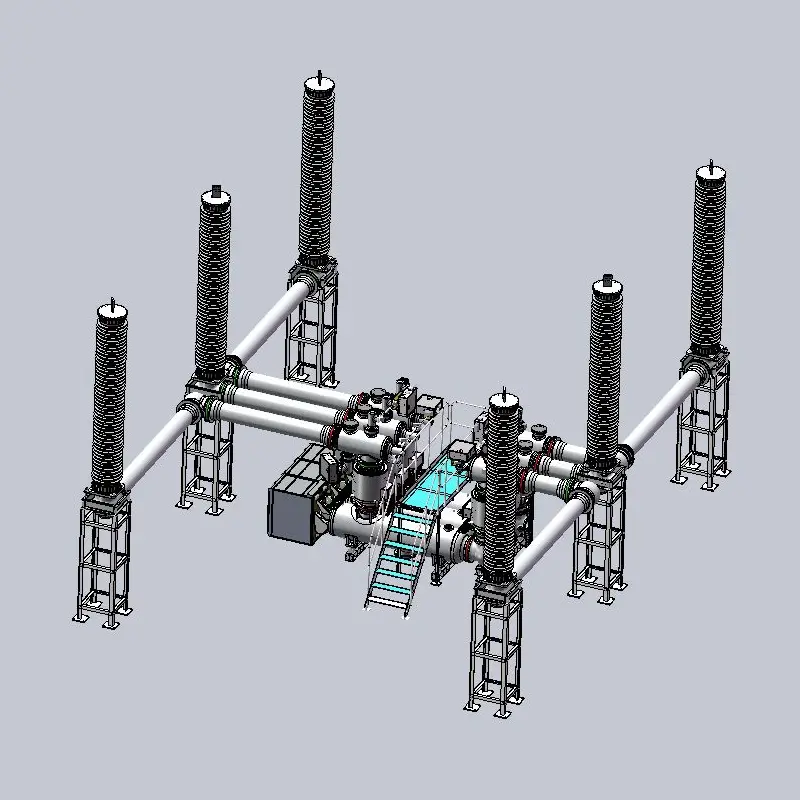

Rated voltage: 363/420kV;
Rated frequency: 50/60Hz;
Rated current: 4000/5000A;
Rated short-circuit breaking current: 50/63 kA;
Rated short-circuit closing current: 130/171kA;
Rated short-time withstand current and duration: 50kA /3s, 63kA/3s;
Rated peak withstand current: 130/171kA;
Installation location: indoor/outdoor
Ambient air temperature Maximum temperature: +55℃ Minimum temperature: -30℃ Maximum daily temperature difference: 32 K
Altitude: ≦1000m
Sunshine intensity (sunny noon) : 1000 W/m2
Pollution level: Level IV
Ice thickness: 10mm/20mm
Wind speed/pressure: 34/700 (m/s)/Pa
Humidity Average daily relative humidity: ≦95% Average monthly relative humidity: ≦90%
Earthquake resistance: 9 degrees horizontal acceleration: 0.3g /s2 Vertical acceleration: 0.15m /s2

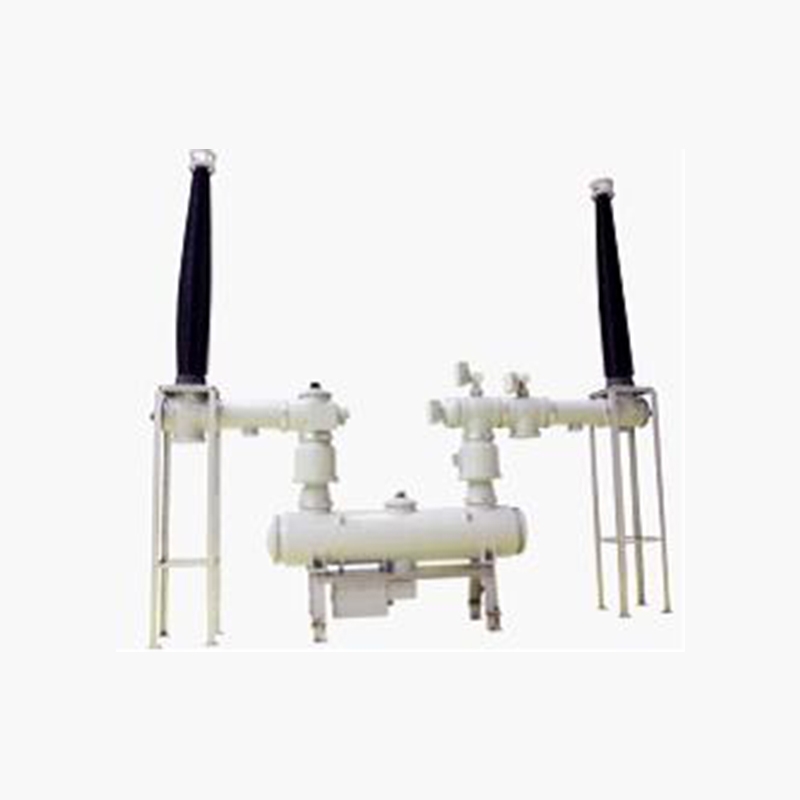

Rated voltage: 550kV;
Rated frequency: 50/60Hz;
Rated current: 5000/6300A;
Rated short-circuit breaking current: 63 kA;
Rated short-circuit closing current: 171kA;
Rated short-time withstand current and duration: 63kA/3s;
Rated peak withstand current: 130/171kA;

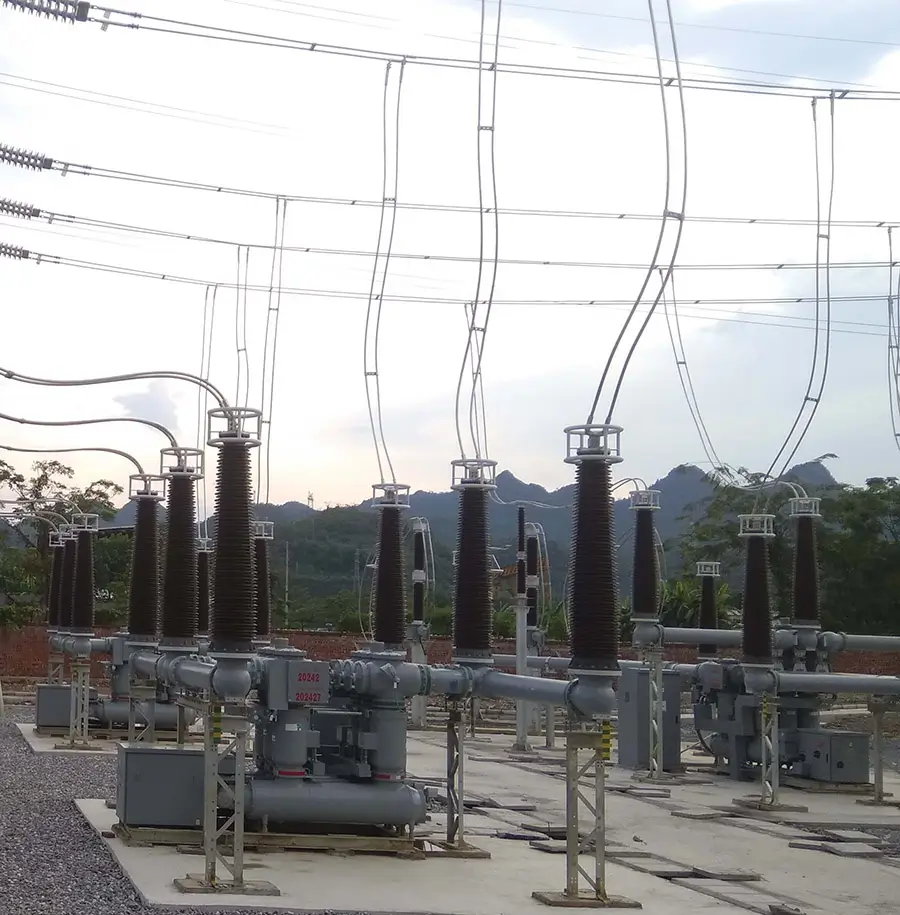

Rated voltage: 252 kV;
Rated frequency: 50/60Hz;
Rated current: 3150/4000/5000A;
Rated short-circuit breaking current: 50/63 kA;
Rated short-circuit closing current: 130/171kA;
Rated short-time withstand current and duration: 50kA /3s, 63kA/3s;
Rated peak withstand current: 130/171kA;
